Loading and securing oversized cargo on flat rack containers requires precise planning, specialized lifting equipment, and professional lashing techniques to ensure transport safety. Flat rack containers are one of the most commonly used container types for transporting oversized cargo, particularly when cargo exceeds the width or weight limits of standard containers. Because flat rack containers have open sides and a reinforced platform, they allow heavy equipment and industrial machinery to be loaded from the side or top using cranes or heavy lifting equipment.
Some shippers assume that oversized cargo can simply be placed on a flat rack container without special preparation, but in reality cargo loading and securing require detailed engineering and safety planning. Proper loading and securing procedures are essential to prevent cargo shifting, structural damage, and transport risks during international shipping.
Understanding Flat Rack Container Structure
Flat rack containers are designed specifically for oversized cargo, providing a robust platform that accommodates items too wide, tall, or heavy for enclosed containers. Their open design eliminates side walls, allowing for flexible loading configurations and better access during operations.
| Feature | Description |
| Platform base | Reinforced steel frame |
| Side walls | None |
| End walls | Fixed or collapsible |
| Lashing points | Multiple securing points |
This container structure provides flexibility for wide or heavy cargo, enabling secure attachment at various points while maintaining overall stability. The reinforced base distributes weight evenly, which is crucial for oversized cargo flat rack applications where loads can exceed standard container limits.
Step 1: Cargo Positioning on the Flat Rack
Correct cargo positioning is critical for stability during flat rack container shipping, as it directly impacts how the load behaves under motion forces like those encountered in sea transport. Before any lifting begins, the cargo must be assessed for its dimensions, weight, and shape to determine the optimal placement on the platform.
Key considerations include center of gravity, weight distribution, structural contact points, and clearance. For instance, aligning the cargo’s center of gravity with the container’s midpoint prevents uneven stress on the base.
| Positioning Factor | Importance |
| Center of gravity | Prevent tipping |
| Weight distribution | Maintain container balance |
| Contact surface | Avoid structural damage |
| Clearance | Ensure safe loading |
Improper positioning can lead to transport instability, such as cargo tilting during vessel movements or road vibrations. Experienced handlers use measurements and simulations to verify positioning, often incorporating tools like laser levels for precision. Companies handling heavy equipment shipments often rely on professional oversize cargo transportation services to ensure proper loading, securing, and transport planning.
Step 2: Lifting and Loading Methods
Selecting the appropriate lifting and loading methods is essential to avoid damage to both cargo and container during flat rack container loading operations. The choice depends on the cargo’s weight, shape, and the available equipment at the loading site, whether it’s a port yard or manufacturing facility.
Common methods include crane operations for overhead lifts and forklift approaches for ground-level placement. Safety protocols, such as using certified slings and spreader beams, must be followed to distribute forces evenly.
| Loading Method | Typical Use |
| Crane lifting | Heavy machinery |
| Forklift loading | Smaller equipment |
| Roll-on loading | Wheeled vehicles |
| Heavy-lift cranes | Extremely heavy cargo |
Lifting operations must follow strict safety procedures, including pre-lift checks for equipment integrity and clear communication among the team. In practice, wind conditions and ground stability are factored in to prevent accidents, ensuring the cargo is gently lowered onto the platform without abrupt impacts that could compromise structural integrity.

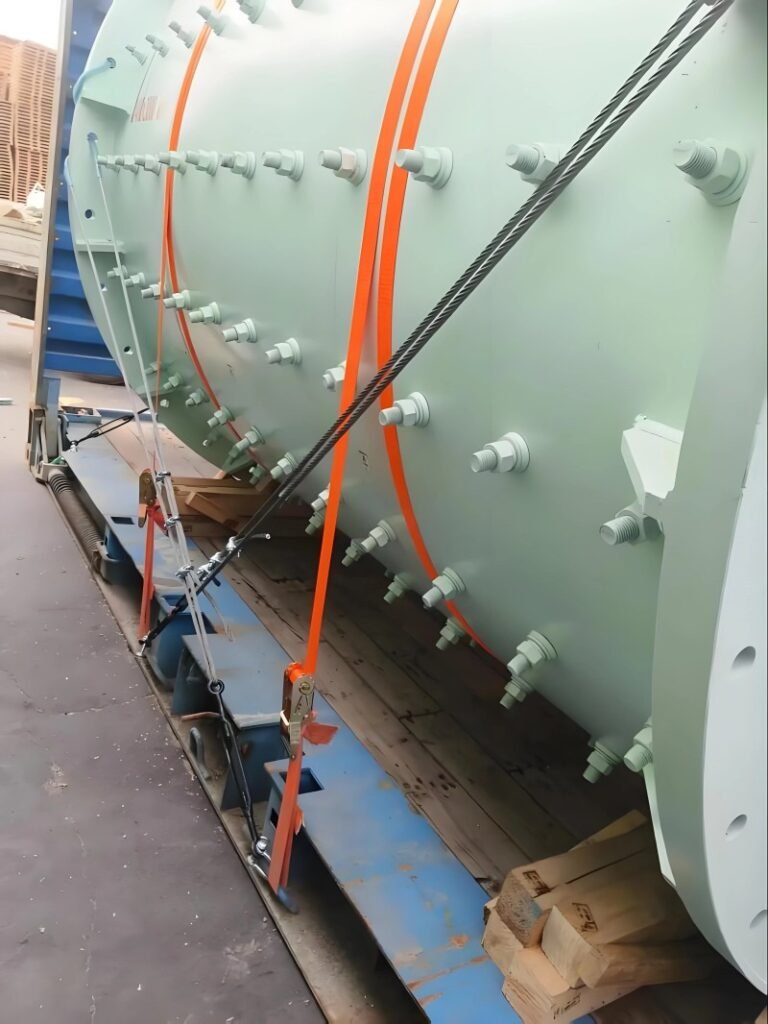

Step 3: Securing Oversized Cargo with Lashing Systems
Lashing systems are fundamental to securing oversized cargo on flat rack containers, as they counteract forces from acceleration, deceleration, and wave-induced motions during transit. Without adequate lashing, even well-positioned cargo can shift, leading to potential hazards.
The process involves attaching restraints at multiple lashing points on the container, tailored to the cargo’s profile. For example, chains are tensioned using turnbuckles to achieve the required holding force.
| Lashing Method | Purpose |
| Chain lashing | Secure heavy cargo |
| Steel wire lashing | Stabilize large structures |
| Tension belts | Prevent lateral movement |

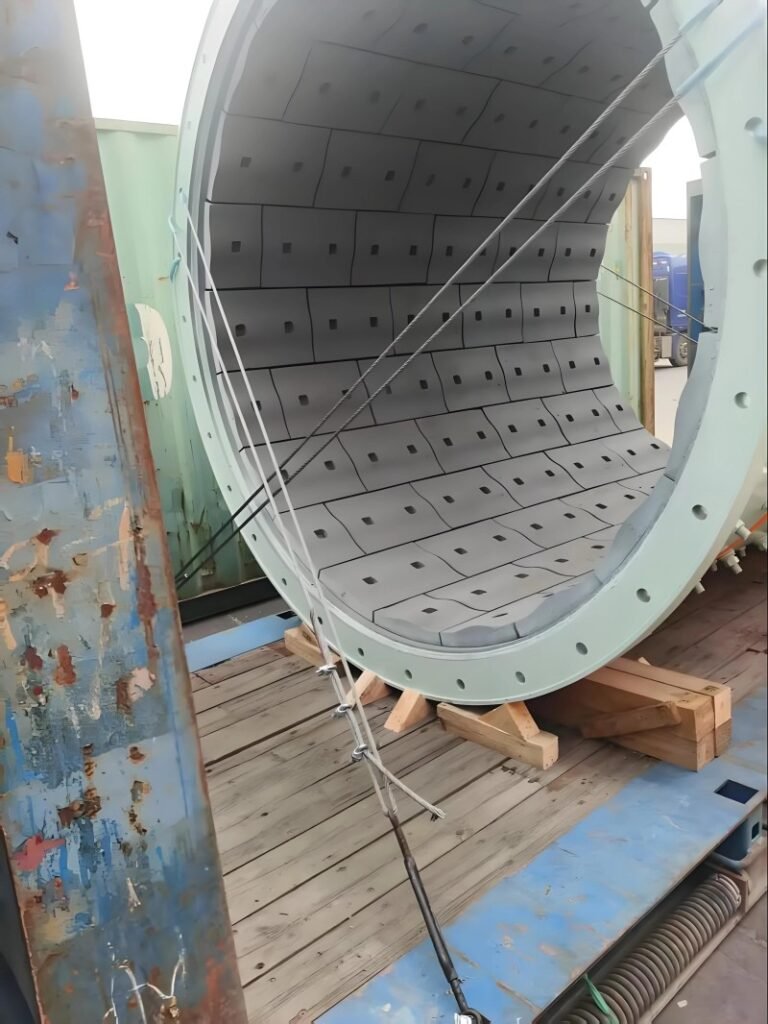

| Wooden blocking | Stabilize cargo base |
Flat rack container lashing methods maintain cargo stability during sea transport by distributing restraining forces proportionally. Calculations based on cargo weight and expected g-forces guide the number and placement of lashings, often following international standards like those from the International Maritime Organization (IMO). In real-world scenarios, lashings are applied in layers—direct to cargo and then to container points—for redundancy.
Types of Lashing Materials
Handlers select materials based on tensile strength and environmental resistance. Chains offer high durability for metal-to-metal contact, while synthetic belts provide flexibility without scratching surfaces.
Tensioning Techniques
Proper tensioning ensures lashings remain effective; over-tensioning can deform cargo, while under-tensioning allows movement. Tools like torque wrenches help achieve precise levels.
Step 4: Additional Cargo Protection Methods
Oversized cargo often requires additional protection beyond basic lashing to mitigate risks from environmental exposure or mechanical stress during handling. These measures complement the securing process by addressing vulnerabilities like moisture ingress or vibration fatigue.

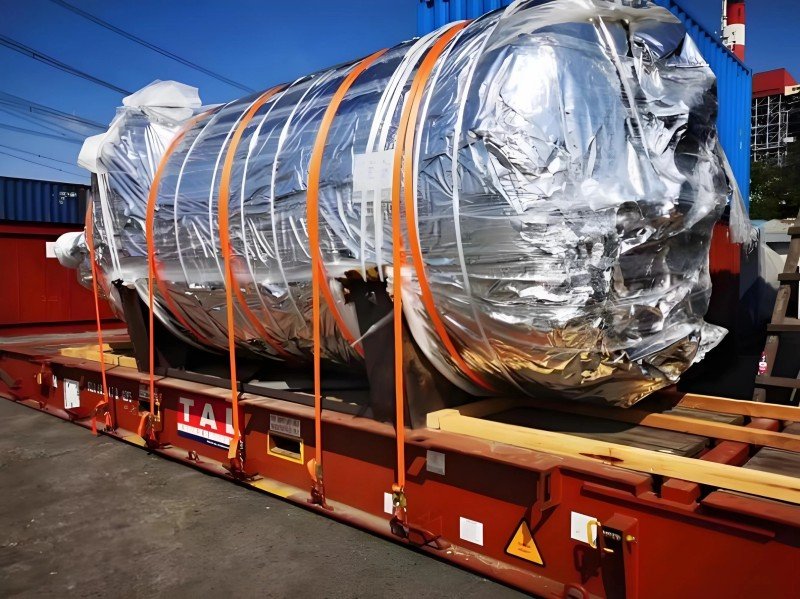

For instance, covers are applied after securing to shield against rain or salt spray in maritime environments.
| Protection Method | Purpose |
| Tarpaulin covers | Weather protection |
| Wooden frames | Structural protection |
| Anti-slip mats | Increase friction |
| Steel brackets | Reinforce securing points |
These protection methods reduce cargo damage risk by creating barriers against external elements. In operations involving irregular shapes, custom frames distribute pressure points, while mats prevent sliding on the steel base. Practical application involves layering protections sequentially after lashing, ensuring they don’t interfere with inspections.
Inspection and Safety Checks Before Transport
Thorough inspections and safety checks are required before shipment to verify that all loading and securing elements meet operational standards. This final step catches potential issues that could compromise safety during transit.
Checks cover everything from visual assessments to measured verifications, documented for regulatory purposes.
| Inspection Item | Purpose |
| Lashing tension | Ensure secure fastening |
| Cargo stability | Prevent movement |
| Container integrity | Verify structural safety |
| Documentation | Compliance verification |
Inspection ensures transport safety and regulatory compliance by confirming that the setup can withstand calculated forces. In port settings, certified inspectors use checklists aligned with codes like the Cargo Securing Manual, often involving third-party verification for high-value shipments.
Common Challenges When Loading Oversized Cargo
Handling oversized cargo presents several common challenges that require experienced intervention to maintain efficiency and safety. These issues stem from the inherent variability of such loads, demanding adaptive strategies.
For example, irregular shapes complicate uniform securing, often necessitating custom solutions.
| Challenge | Explanation |
| Weight imbalance | Causes instability |
| Cargo irregular shape | Difficult securing |
| Limited loading space | Port handling constraints |
| Weather exposure | Cargo protection issues |
Experienced logistics teams manage these challenges through pre-planning, such as conducting site surveys and using simulation software for load modeling. In cases of weight imbalance, shimming or counterweights are employed, while for weather exposure, timed operations minimize risks.
Conclusion — Proper Loading and Securing Are Critical for Safe Transport
Oversized cargo transport requires precise loading procedures and professional securing systems. Correct cargo positioning, proper lashing systems, and careful safety inspections are essential to ensure that oversized cargo remains stable and secure throughout international transport. By adhering to these operational practices, handlers minimize risks and maintain compliance with industry safety standards, ultimately facilitating reliable delivery of heavy or irregular loads.
